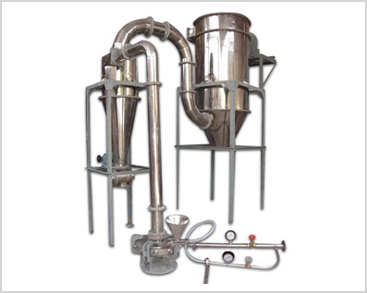

Know Process of JET MILL
Mill is designed to inject high pressure Air or Steam in to cylindrical chamber through Special designed Nozzle. Nozzles are placed at equally spaced on peripheral wall to have each Jet is tangential at imaginary smaller circumference. Venture system is control fed rate of material very precisely to get productivity. Jets are generating high velocity vortex during material feeding which create vacuum to suck product into high speed vortex. Suspended partical of the material are collide with each other and reduce themselves by attrition as well as collision whenever it comes in strong velocity gradients near the jet. Micronized particals are getting out with jet fluid through center of chamber and get collected into the cyclone collector system. Heavier or oversize particals are stay in to chamber until micronized due to Centrifugal force.
Advantages of our Design
Micronizing as well as classification is to be done in Tridev Jet Mill by taking advantage of fluid energy. Unique design jet mill is to micronise wide range of dry solids material very economically and efficiently. Particals are collide each other without any moving part, which results absolute productivity and negligible maintenance. Inter-changeable liners are provided. Easy dismantle for cleaning and quick reassemble is possible for cleaning and material change. Compact designs require lees floor space.
Advantages of our JET MILL
Number of particles and surface area is increased by micronise. . It increases suspensibility, dispersion rate, and surface area of particle and bulk density. Micron size particle improve product quality to great extent as compared to 325-mesh particle in terms of efficiency, dispersions, behavior and intimate blends of different material.
JET MILL is for
Tridev Jet mill is to micronise material of Pharmaceuticals, Chemicals, Pigments, Minerals, Agrochemicals, Pesticides, Minerals and thermoplastics industries. It is also for heat sensitive, corrosive and abrasive materials.
Below mention are Standard models offered. Ask us to know other detail
Tridev Microfiner (Jet Mill) Specification |
| Model |
Air compressor HP |
Air CFM FAD |
Production Capacity appx |
Appx space require for mill having 1000mm bagging height. |
| |
7 kg/cm2 Pressure |
|
Kg/hr |
L X W X H, meter |
TMF-2 |
TMF-4 |
TMF-6 |
TMF-8 |
TMF-10 |
TMF-12 |
TMF-15 |
TMF-18 |
TMF-20 |
TMF-24 |
TMF-30 |
|
|
10 |
20 |
30 |
40 |
50 |
60 |
75 |
120 |
150 |
250 |
450 |
|
|
25 |
45 |
75 |
125 |
200 |
265 |
380 |
530 |
650 |
1050 |
1725 |
|
|
1 |
3 |
10 |
22 |
40 |
65 |
100 |
160 |
210 |
400 |
720 |
|
|
0.6 x 0.6 x 1 |
1 x 1 x 1.5 |
2 x 1 x 1.5 |
3 x 1 x 2 |
4.5 x 2 x 4 |
4.5 x 2 x 4 |
5 x 2 x 4 |
5 x 2 x 5 |
5 x 2 x 5 |
5 x 3.5 x 6 |
6 x 3 x 7.5 |
|
|
|
Models selection different project and order:
Design: General OR Pharma.
Construction: MS, SS, OR Polymer.
Wear reduction: Liners OR lined chamber with different material.
Different design: Grinding chamber and venture feeding system.
Discharge: Top Or Bottom.
Material collection: Cyclone, dust collector, pulse jet dust collector or their combination.
1. Production capacity, fineness and HP are normal only and vary from case to case depending upon several factors.
2. Specifications and design are subject to change without notice.
3. Different design can be offered for different applications.
4. Average feed size of materials is 200 mesh with operating pressure in between 7-8 kg/cm2, but results widely depend on material characteristics.
