Design Construction of DOUBLE TOGGLE JAW CRUSHER
Mild steel fabricated crusher body is strengthened to withstand heavy load. Main (Eccentric) shaft is running on antifriction bearings. Jaw plates and chick plates are made from highly wear resistance manganese steel. Oscillating Jaw is fabricated from mild steel, which is fitted on main shaft. Both flywheels are work as pulleys. Flat OD wheel is for flat belt drive and V-grooved wheel is for V-belt drive. Out let gap can be varied easily by add OR remove mild steel plates between toggle plate and main body.

Know Process of JAW CRUSHER
Any stone or big size object is to be fed between two jaws at top. The inertia require to crush the material is provided by weighted flywheel that moves the shaft creating an eccentric motion that cause the closing of gap. Object will get compressed and crushed between two jaws when gap is closed.
Object is broke into small size. Crushed material will drop at bottom of jaw. Refer spec table to define inlet and out size of object.

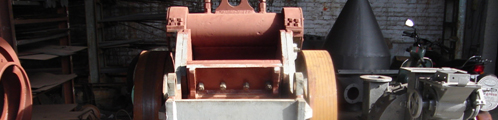

Tridev JAW CRUSHER is for

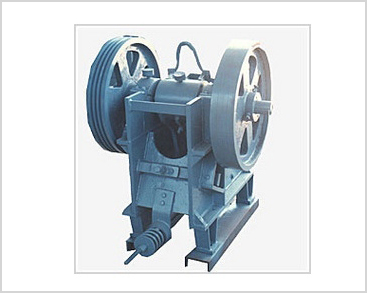

Tridev jaw crusher is Heavy duty with robust design single toggle Jaw Crusher. It is for Crushing wide variety of hard material. Material can be crushed are Lime Stone, Marble, Granite, Rock, Dolomite, Bentonite, Coal, Ferro-Alloys etc.

Below mention models are Standard models. Ask us to know other detail.

Tridev Jaw Crusher Specification   Model Unit TJC 8x4 TJC 10x6 TJC 12x7 TJC 16x9 Intel Mouth Size Max Feed Size Working Speed Motor mm mm RPM HP 200x100 75 300 0 250x150 125 300 10 300x175 140 300 15 400x225 180 300 25

Capacity Production Ton / hr Out let gap (mm) 15 20 25 40 50 60 0.5 0.8 1.2 - - - 1.5 2 3 4 - - - 6 8 10 - - - 10 12 14 16 18

Available Options are:
1. Intel hopper
2. Outlet tray / chute
3. Motor Base Frame

Motor HP & Production is totally depends on property of material.
All given data are nominal only. Data may vary widely from case to case depending upon many factors.

Design Construction of DOUBLE TOGGLE JAW CRUSHER
Tridev Jaw Crusher os Heavy duty with robust design double toggle Jaw Crusher is design to withstand heavy load. Mild steel fabricated strong box beam designed body. Eccentric shaft made from alloy steel is running on antifriction bearings. Jaw plates and chick plates are made from highly wear resistance manganese steel. Fix jaw is fabricated from mild steel and fitted on machined surface of body. Oscillating jaw is fabricated from mild steel and fitted on hinge pin with low-pressure bearing. Hinge pin on center of crusher to help direct crushing without rubbing. Double toggle provide balance distribution of maximum load on eccentric shaft. Liter spring provide cushioning to the toggle, which is compensator for wear and tear. Both flywheels are work as pulleys and reduce power requirement. Flat OD wheels are for flat belt drive and V-grooved wheels are for V-belt drive. Outlet gap can be varied easily by add OR remove mild steel plates between toggle plate and main body.
