Design of Tridev BATCH TYPE BALL MILL

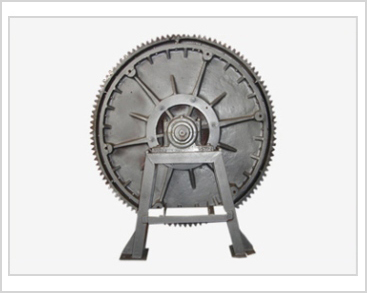

Tridev Batch Type Ball mill is consist heavy duty fabricated shell with both side bosses provide for providing good strength. Main shaft is fixed on both side bosses of shell. Main shaft is supported on both sides bearing & housing. Entire rotary drum assembly is mounted on heavy-duty fabricated structure. Inside lining can be done by particular material as well as design based on requirement. Material charging manhole is also used for mill cleaning purpose. Counter balance weight is fixed at opposite side of manhole, which help mill to rotate in balance condition.
Know process of Tridev BATCH TYPE BALL MILL
Tridev batch type ball mill is working as batch type operation. Adequate size, shape and qty Grinding media is placed inside rotary drum from inlet port. Material can be fed from inlet connection provided in shell. All ports need to close before start rotating rotary drum. Fed material rotates with rotary drum. Grinding media rotate and dropped in side and reduce particle size. Mixing and grinding operation being done simultaneously when drum rotates. Mill is to be stop after completion of batch and remove material from outlet port.
Tridev BATCH TYPE BALL MILL is for
Batch Type Ball Mill is operated as batch type. It is useful for wet or dry powder grinding as well as homogenously mix more than one material. Additives can be added for homogenously mixed during batch. It is for grinding Dyes, Ceramics, Pigment, minerals etc.
Below mention models are mostly offered. Ask us to know detail of other special size mills working in field. Other size mill can also customized depending upon customer requirement.
Motor HP and Production is totally depends on property of material and require fineness.
All given data are nominal only. Data may vary widely from case to case depending upon many factors.
Available Options are:
1. Outside jacket.
2. Accessories for closed loop operation (i.e. blower, cyclone, air classifier).
3. Auto feed or discharge hopper.
4. Auto feed or discharge screw.
