Know Process of CONTINOUS BALL MILL

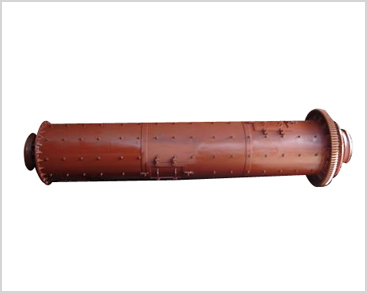

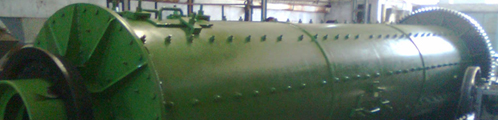

Heavy duty, continuous type ball mill is with three compartment and screen. Replaceable Liners are fixed inside entire mill. Liners material and shape is selected based on material to be grind. Input material is fed in two primary grinding compartments. Large diameter balls for reduce particle size are laying inside first compartment. Material comes into second compartment for further grinding. Small size Balls are laying inside second compartment. Material comes into third for fine grinding. Smaller size media are laying inside third compartment for fine grinding. Diaphragms may place to regulate material level and control retention time. Material is feed and discharged through hollow trunnion at opposite end. Accessories like air classifier, cyclone, blower, return air circuit or dust collector can also be placed for close loop system. Two tiers fixed on both end of mill, which are rotate on four rollers. Rollers are fixed on support and oil immersed. Mill rotates on four roller and two tiers. Girth gear is fixed on shell, which driven mating gear, gearbox and motor, which are fixed on heavy drive base.
CONTINOUS BALL MILL is for
Tridev Continuous Ball Mill is useful for grinding coarse feed to get fine powder in single continuous operation. It is for grinding Ceramics, Cement, Pencil, Paint, Chemical, Ink, Marble, Coal, minerals etc.
1. Below mention models are mostly offered. Ask us to know detail of other special size mills working in field. Other size mill can also customized depending upon customer requirement.
Tridev continuous ball mill specification |
Model |
TCB 1580 |
TCB 1560 |
TCB 1280 |
TCB 1260 |
TCB 1250 |
Mill Dia |
Mill Length |
Motor |
|
|
|
|
|
|
|
|
2. Motor HP and Production is totally depends on property of material and require fineness.
3. All given data are nominal only. Data may vary widely from case to case depending upon many factors
